Network histogram plot

Drawing lattice::levelplot() using a multinethist object.

Usage

# S3 method for class 'multinethist'
plot(
  x,
  y = NA,
  type = "nethist",
  idx_order = 1:max(x$cluster),
  power = 0.25,
  col.regions = function(n) grDevices::hcl.colors(n, palette = "Reds 3", rev = TRUE),
  colorkey = FALSE,
  prob = FALSE,
  digits = 2,
  prob.cex = 0.1 + 0.5/log10(max(x$cluster)),
  prob.col = "white",
  layout = NULL,
  layer_titles = NULL,
  at = NULL,
  ...
)

Arguments

x

a multinethist object from multinethist().

y

A dummy variable for S3 dispatch. Never used.

type

One of nethist (default) or prob. "MNhist" is a deprecated alias for "nethist".

idx_order

A numeric vector for index label order, which must be a permutation of x$cluster. If NA, it uses 1:max(x$cluster).

power

A positive number for the power transform applied to the graphon estimate. Only used when type = "nethist". Default is 0.25.

col.regions

A function taking an integer n and returning n colors. Default is viridis via grDevices::hcl.colors().

colorkey

Logical. Whether to draw a color legend. Default FALSE.

prob

Logical. Whether to print block probabilities on the plot. Default FALSE.

digits

Integer. Number of decimal places for probabilities.

prob.cex

Numeric. cex for probability labels.

prob.col

Color for probability labels. Default "white".

layout

An integer vector c(nrows, ncols) specifying the panel grid for multi-layer plots, following the mfrow convention. If NULL (default), each layer is plotted as a separate figure.

layer_titles

A character vector of length equal to the number of layers plotted, giving each panel's title. If NULL (default), titles default to "Layer 1", "Layer 2", etc.

at

A numeric vector of breakpoints for the color scale. If NULL (default), breakpoints are computed automatically from the data range. Specify a fixed vector to compare plots from different fits on a common scale.

...

Additional arguments passed to lattice::levelplot().

Value

Called for its side effects (plotting). Returns NULL invisibly.

Examples

# \donttest{
set.seed(42)
data(IndianVil)
mnhist_Ind_vil <- multinethist(IndianVil)

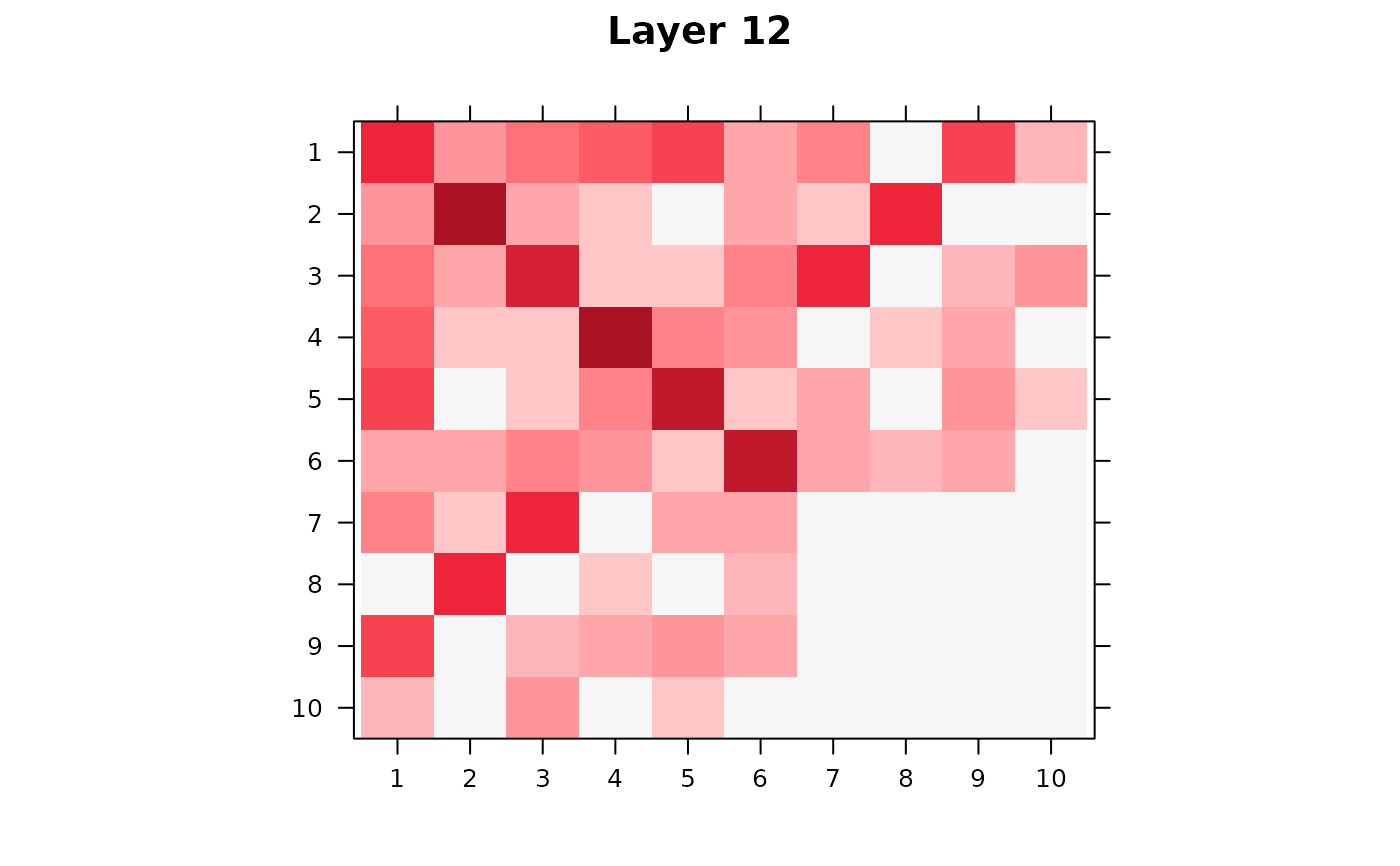

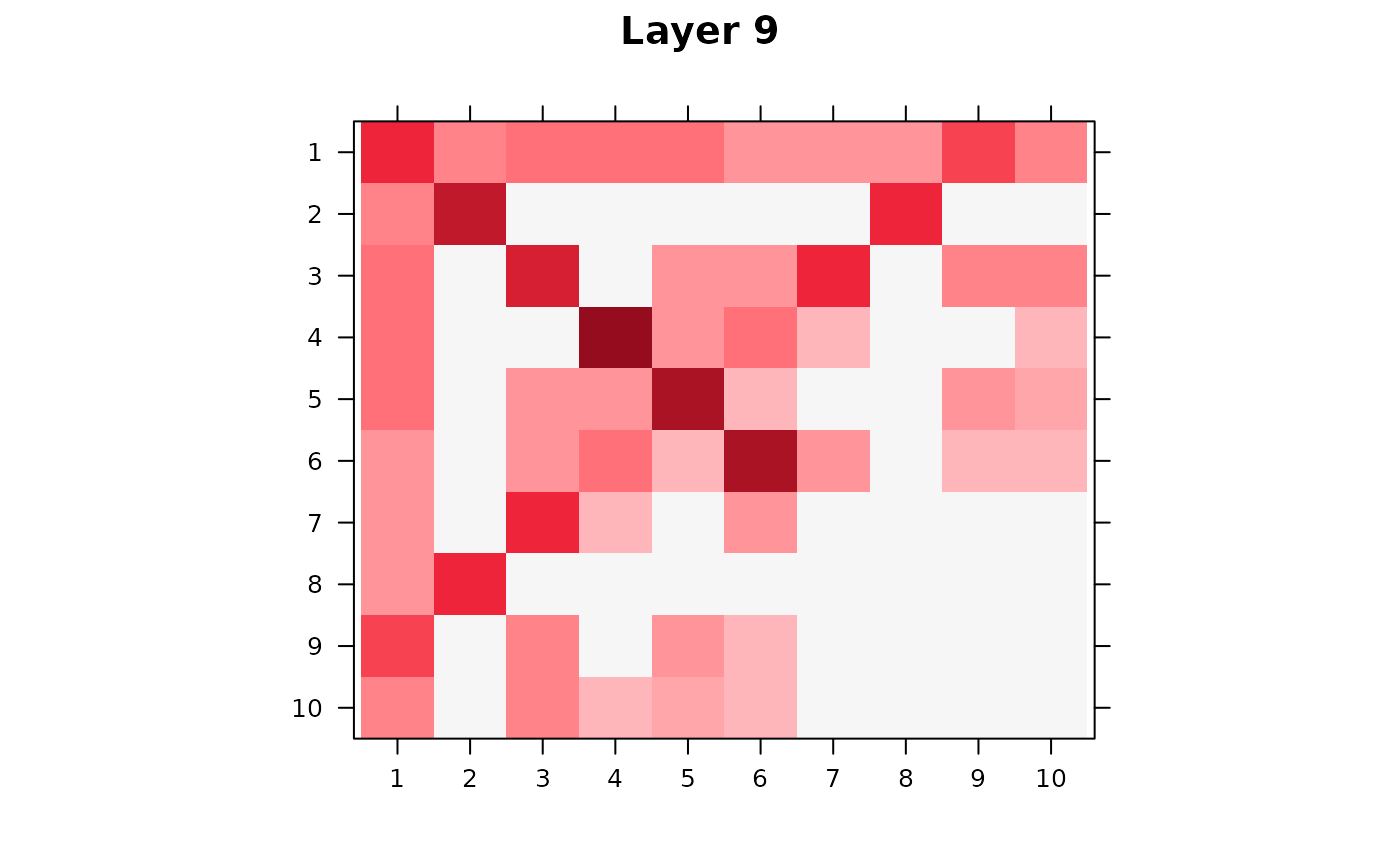

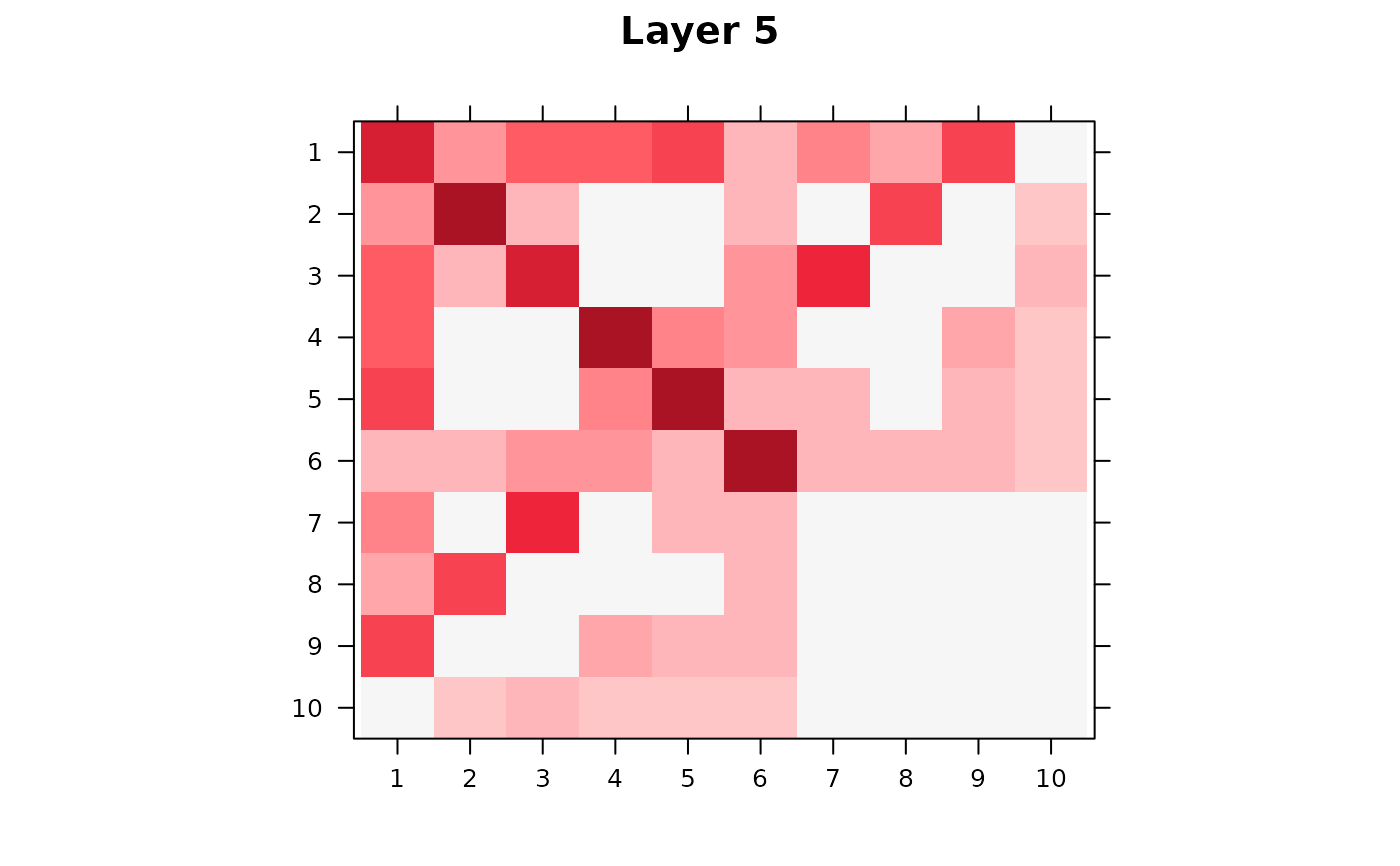

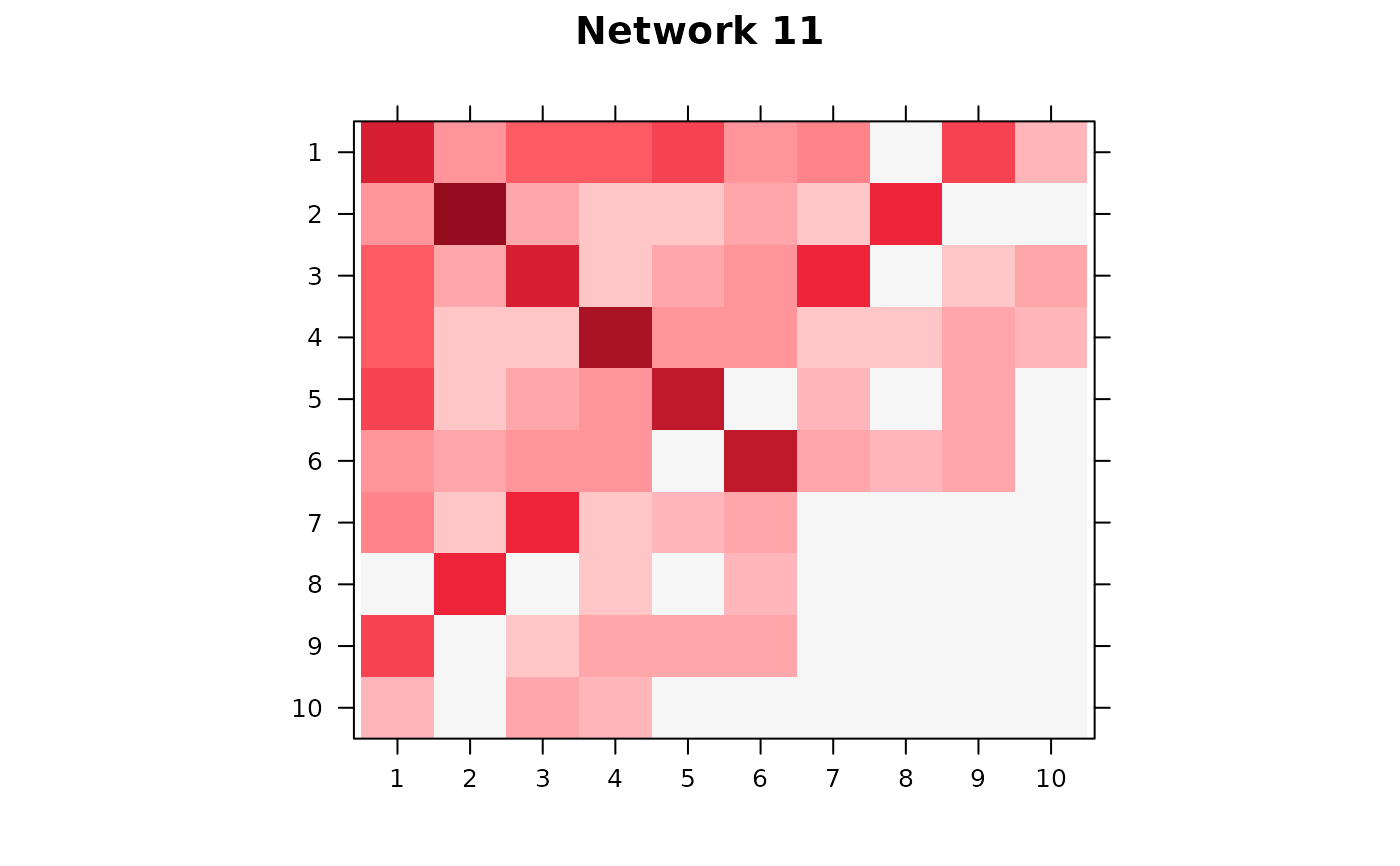

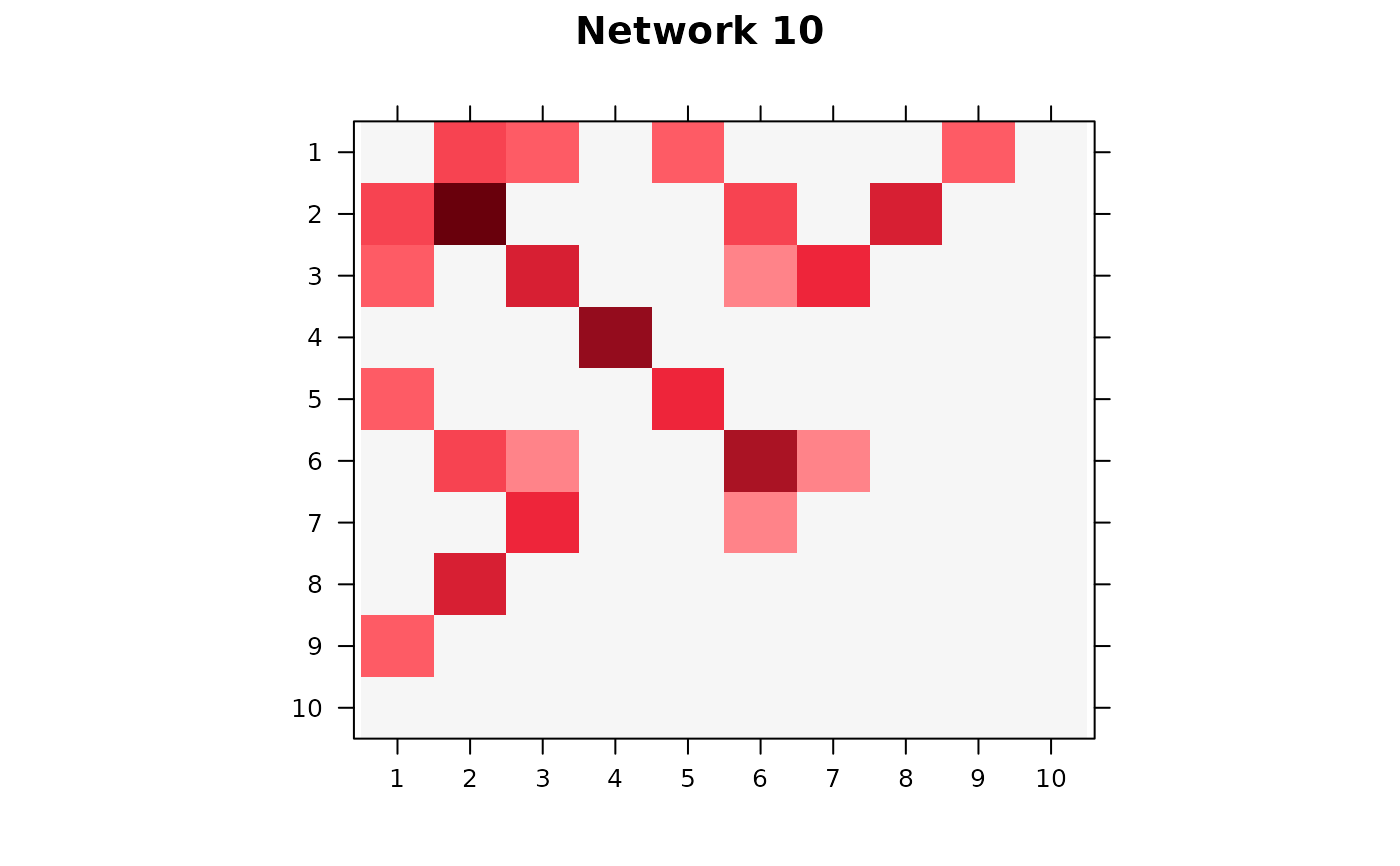

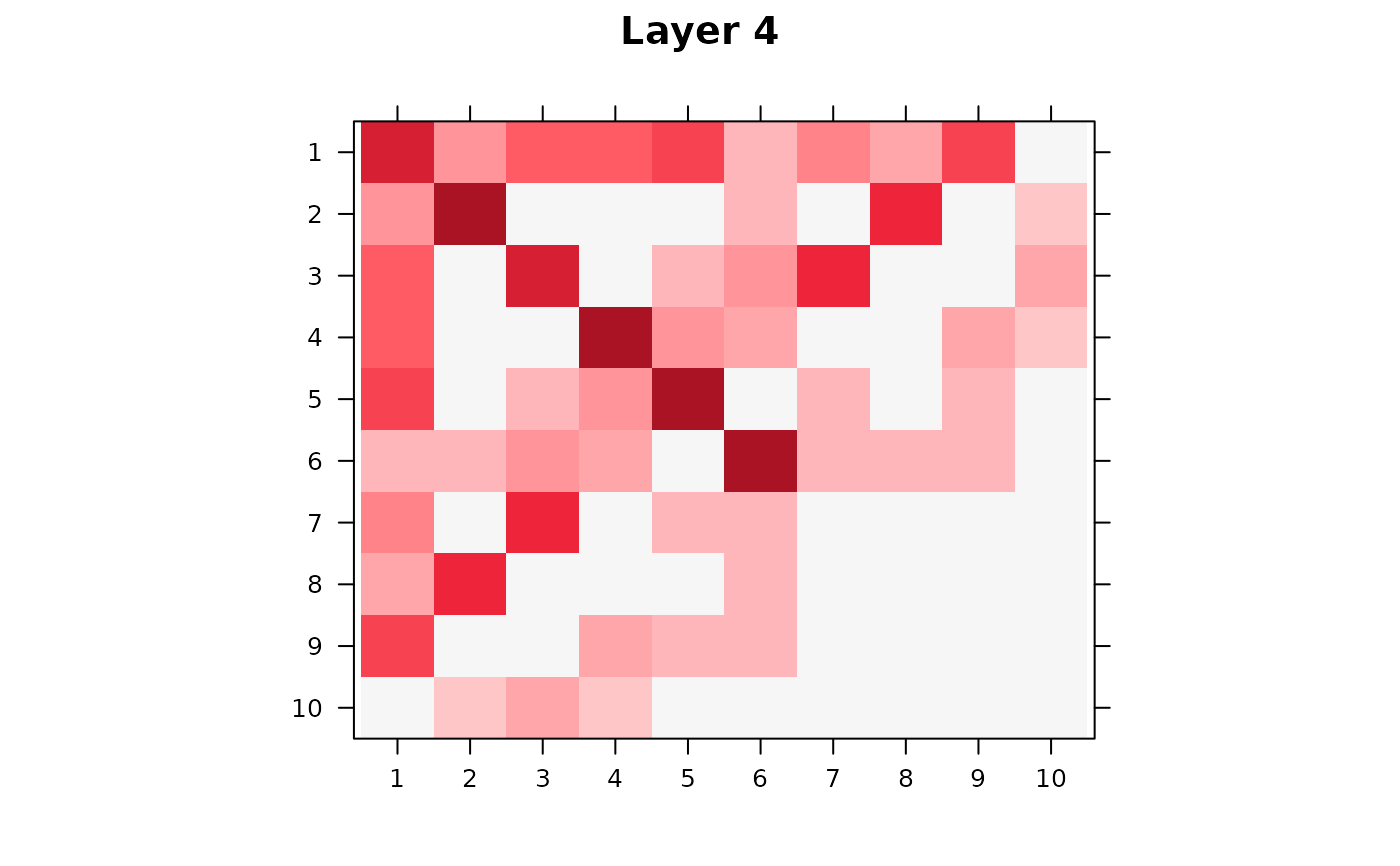

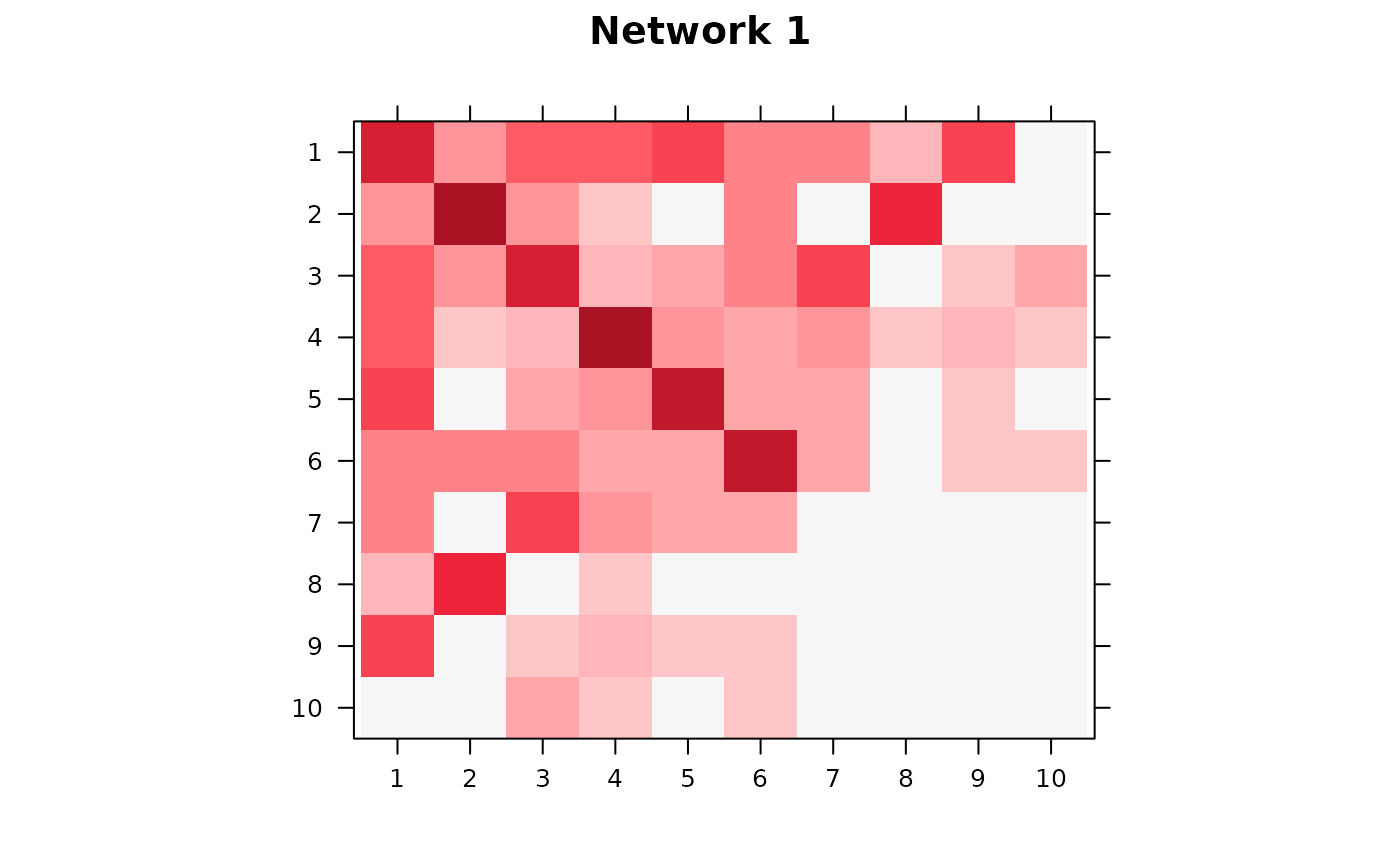

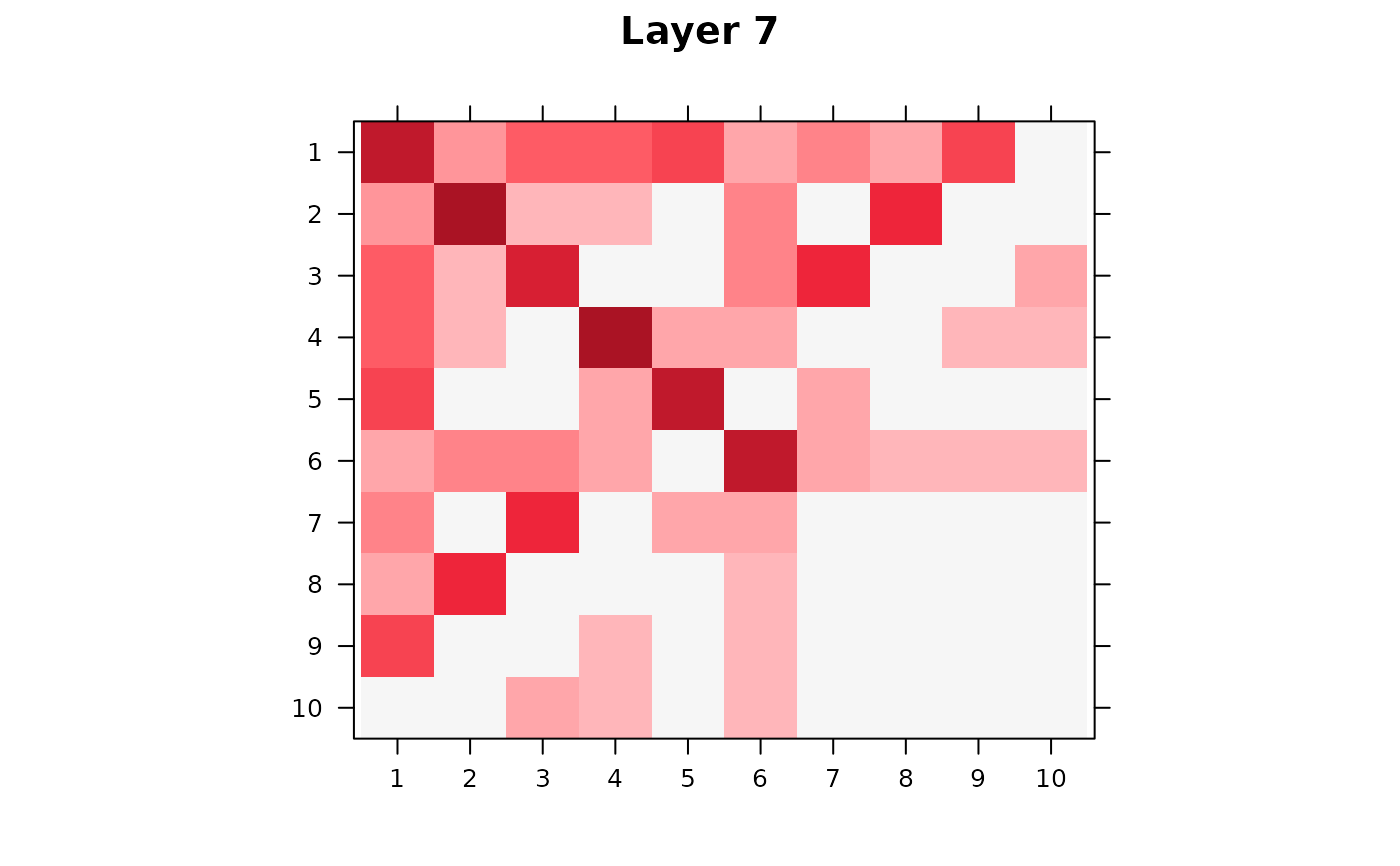

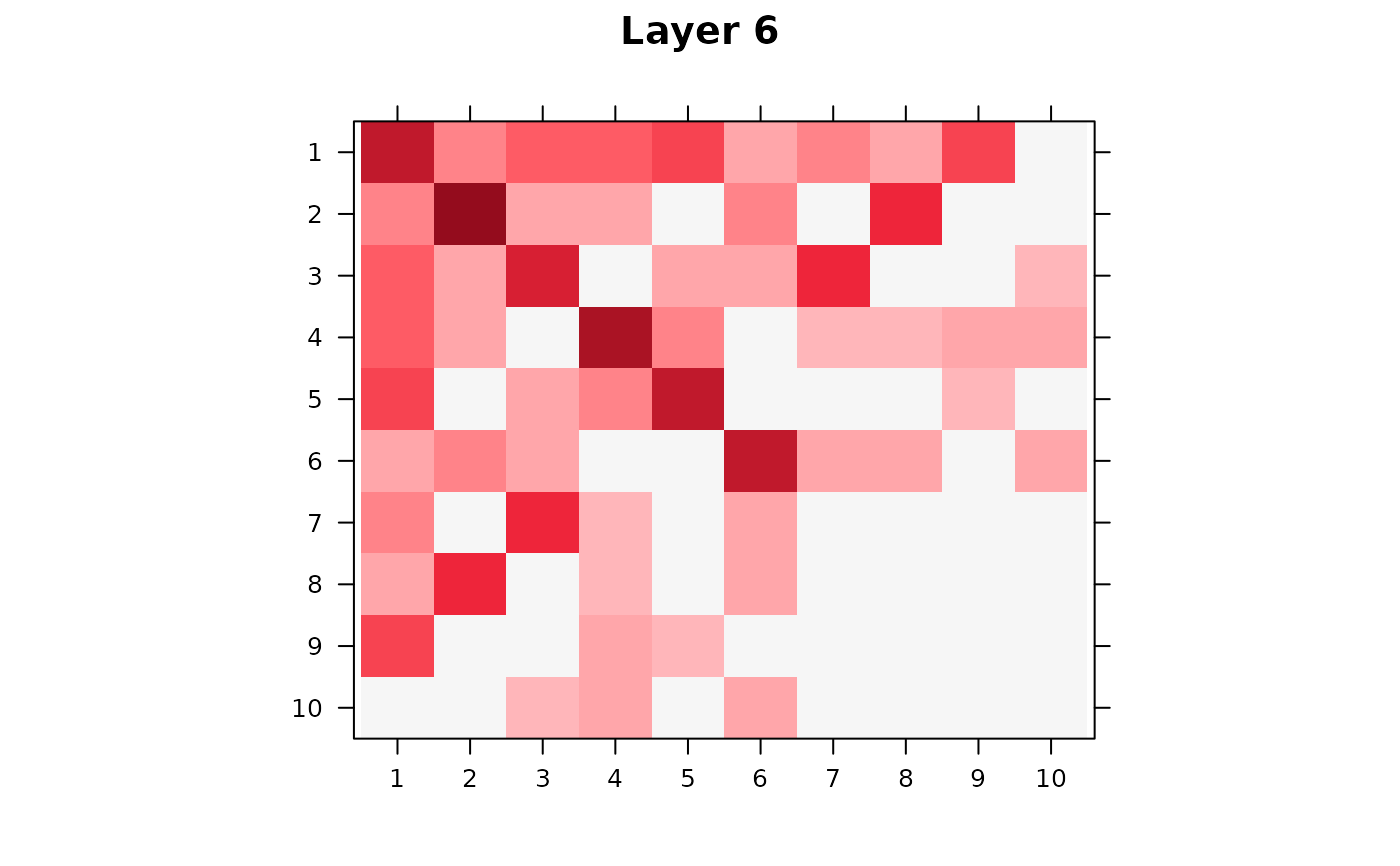

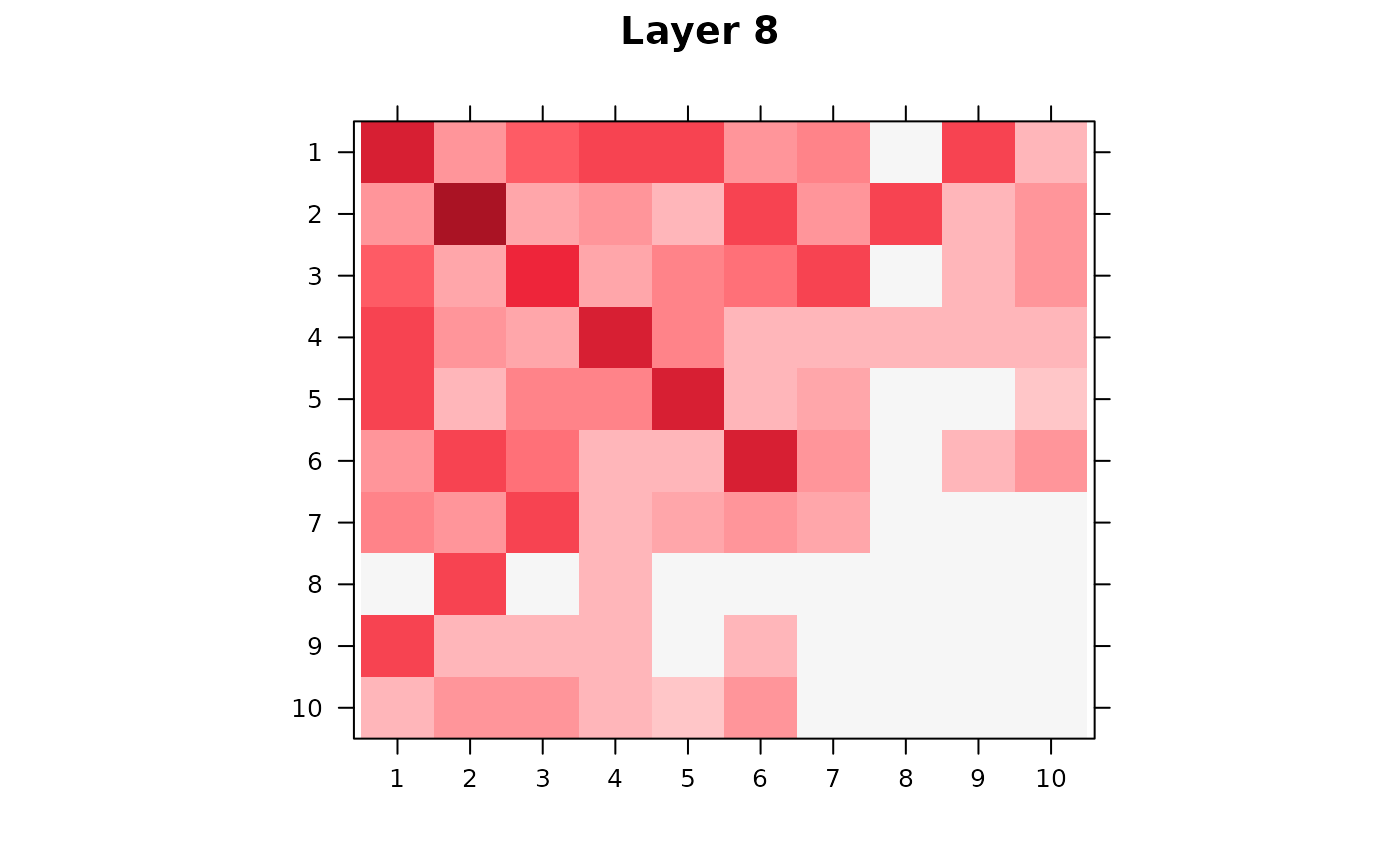

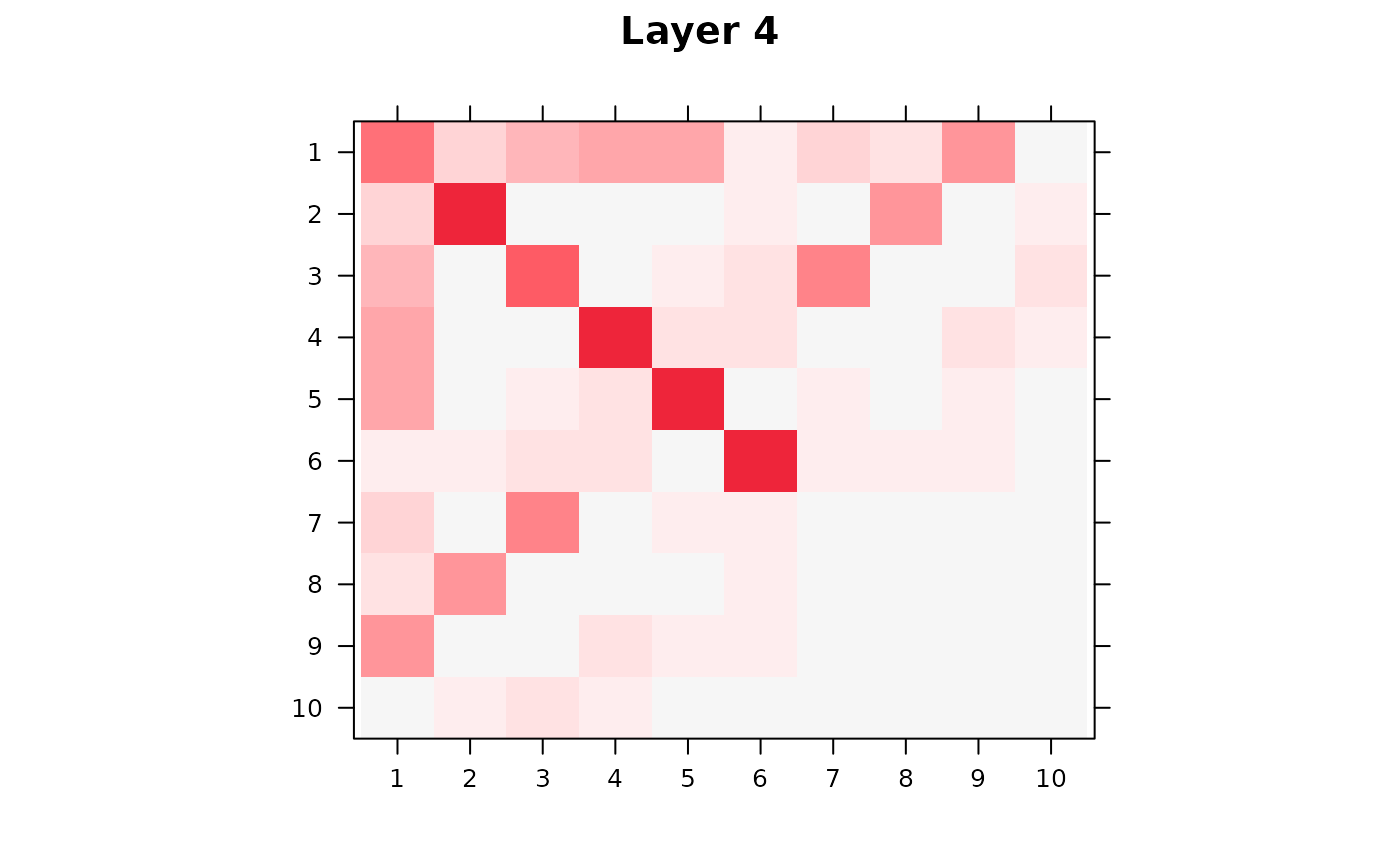

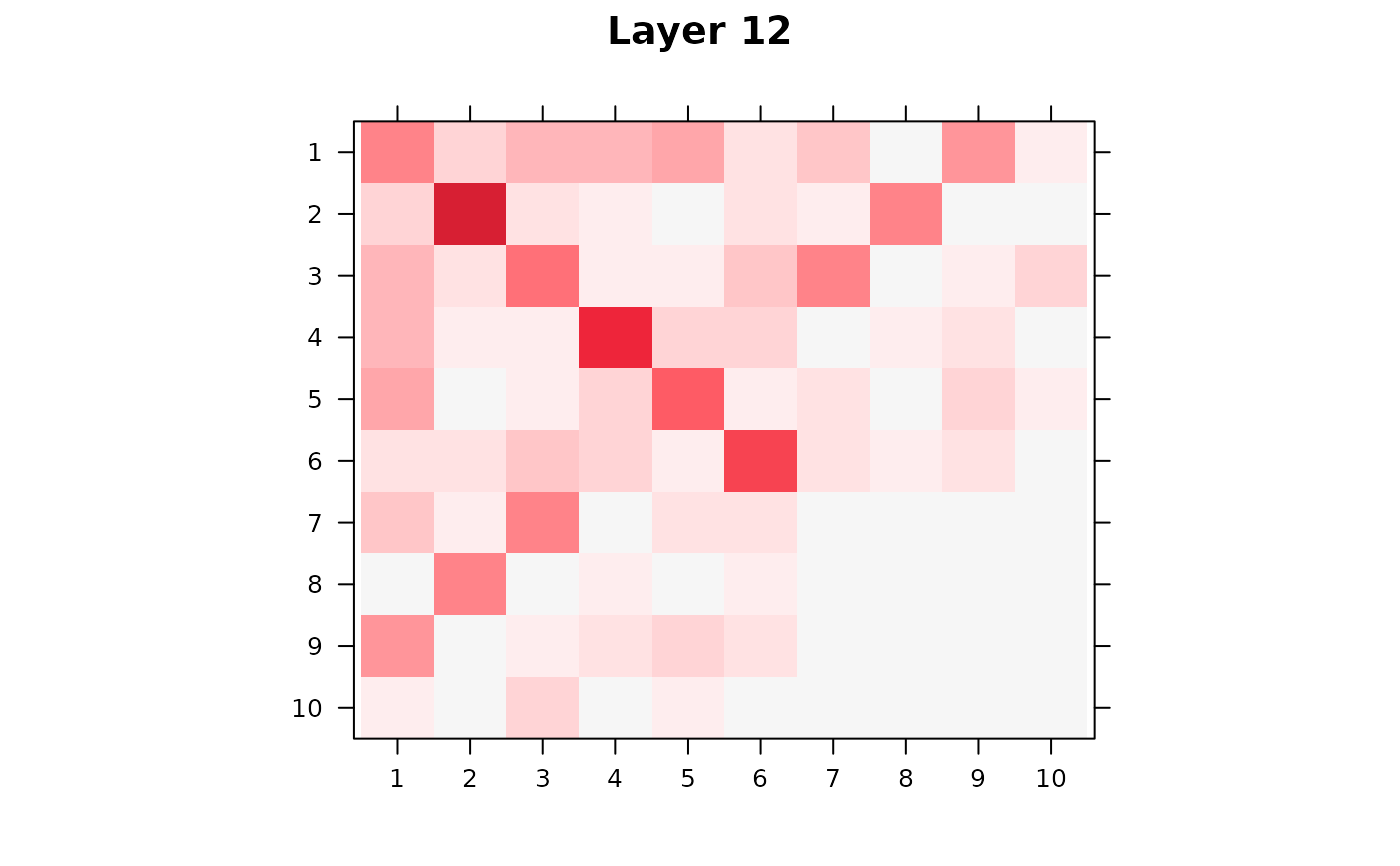

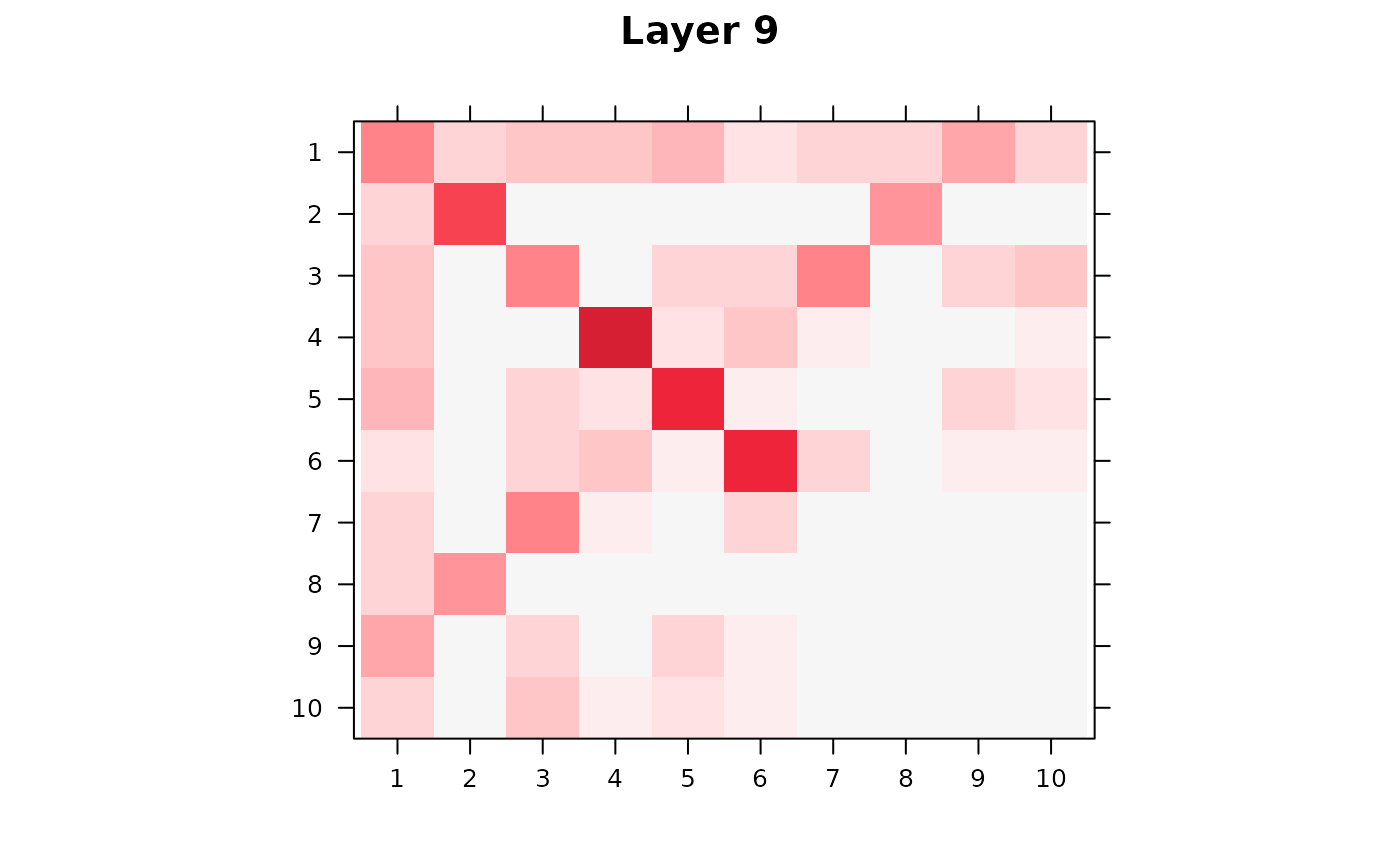

plot(mnhist_Ind_vil)

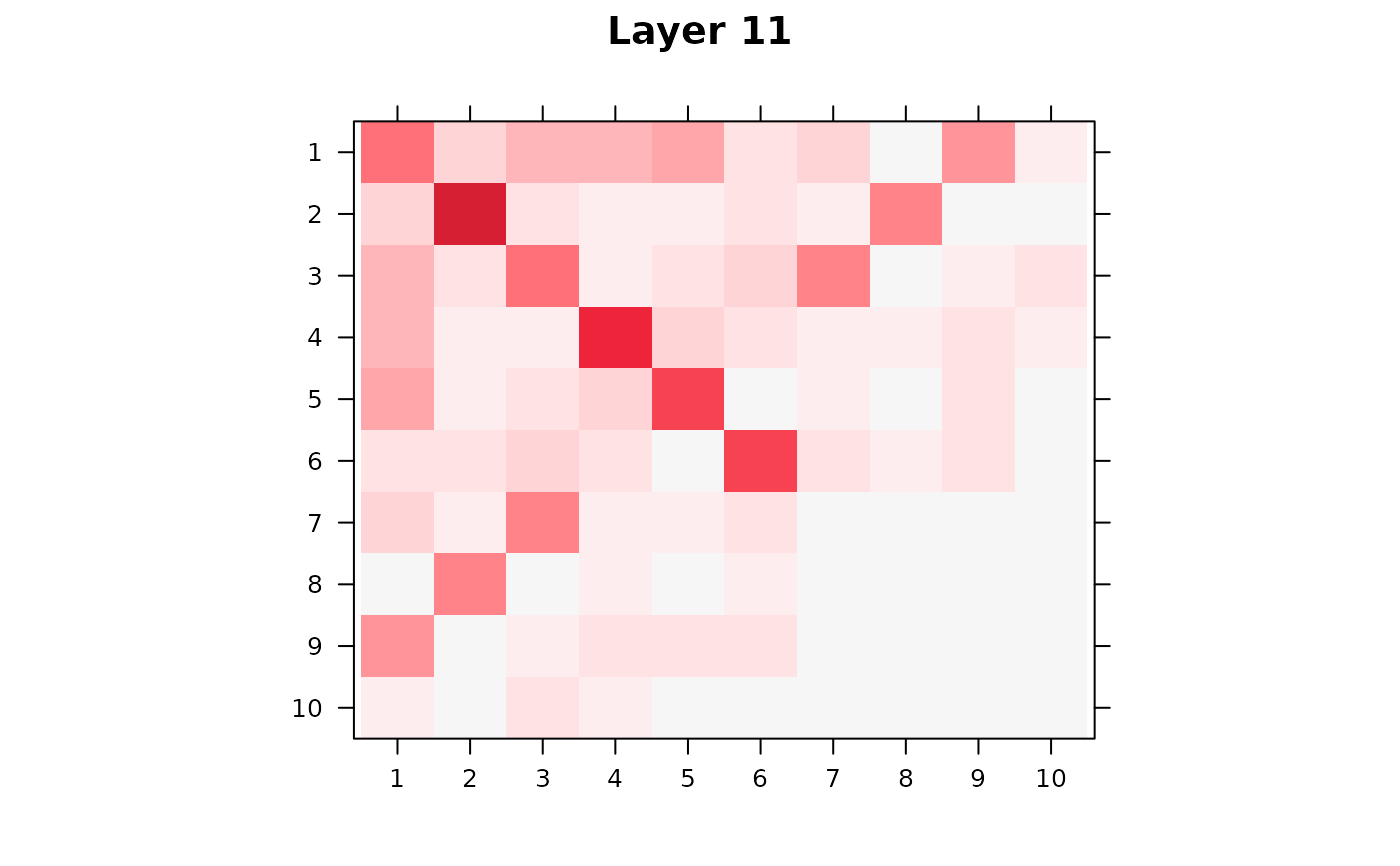

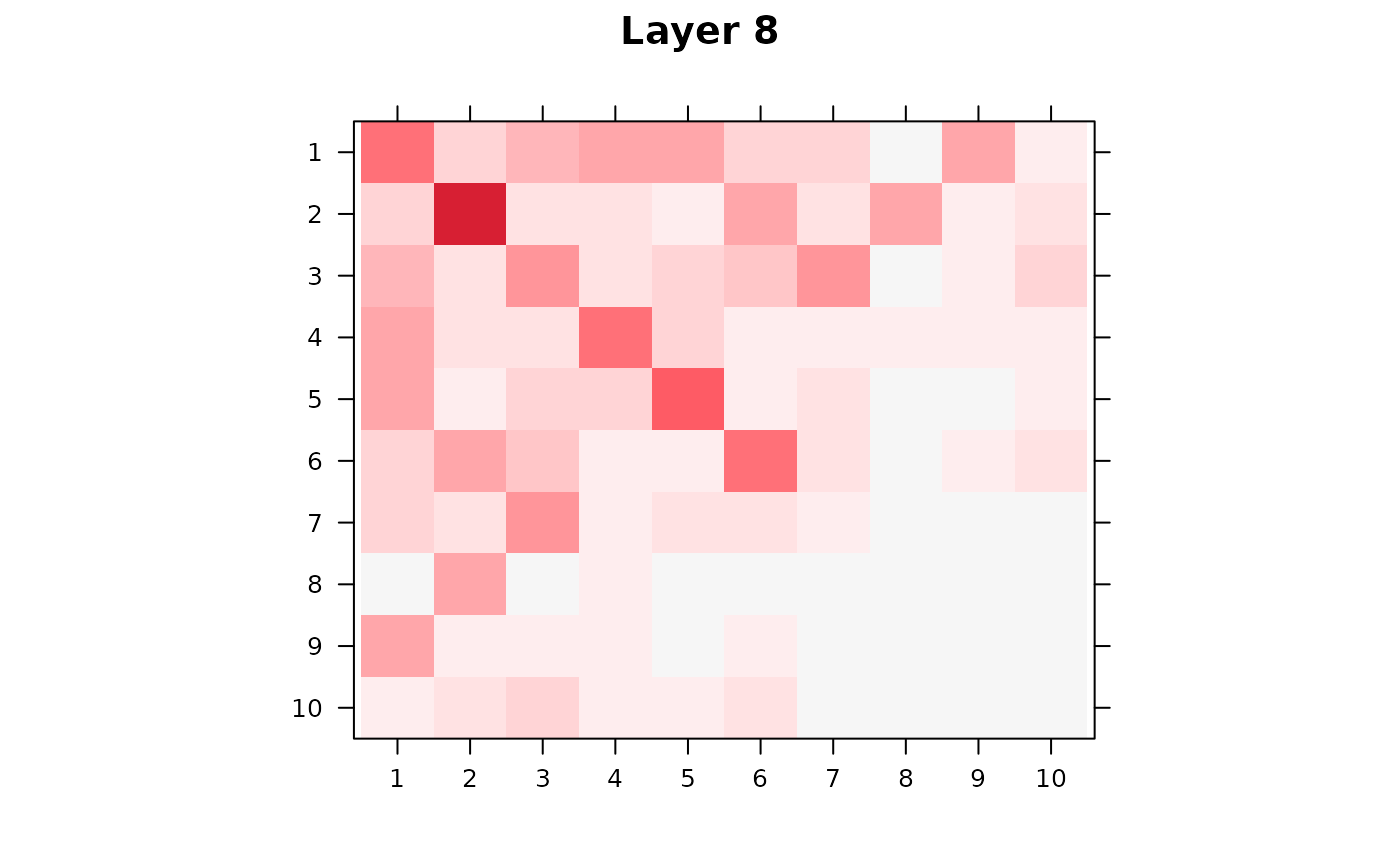

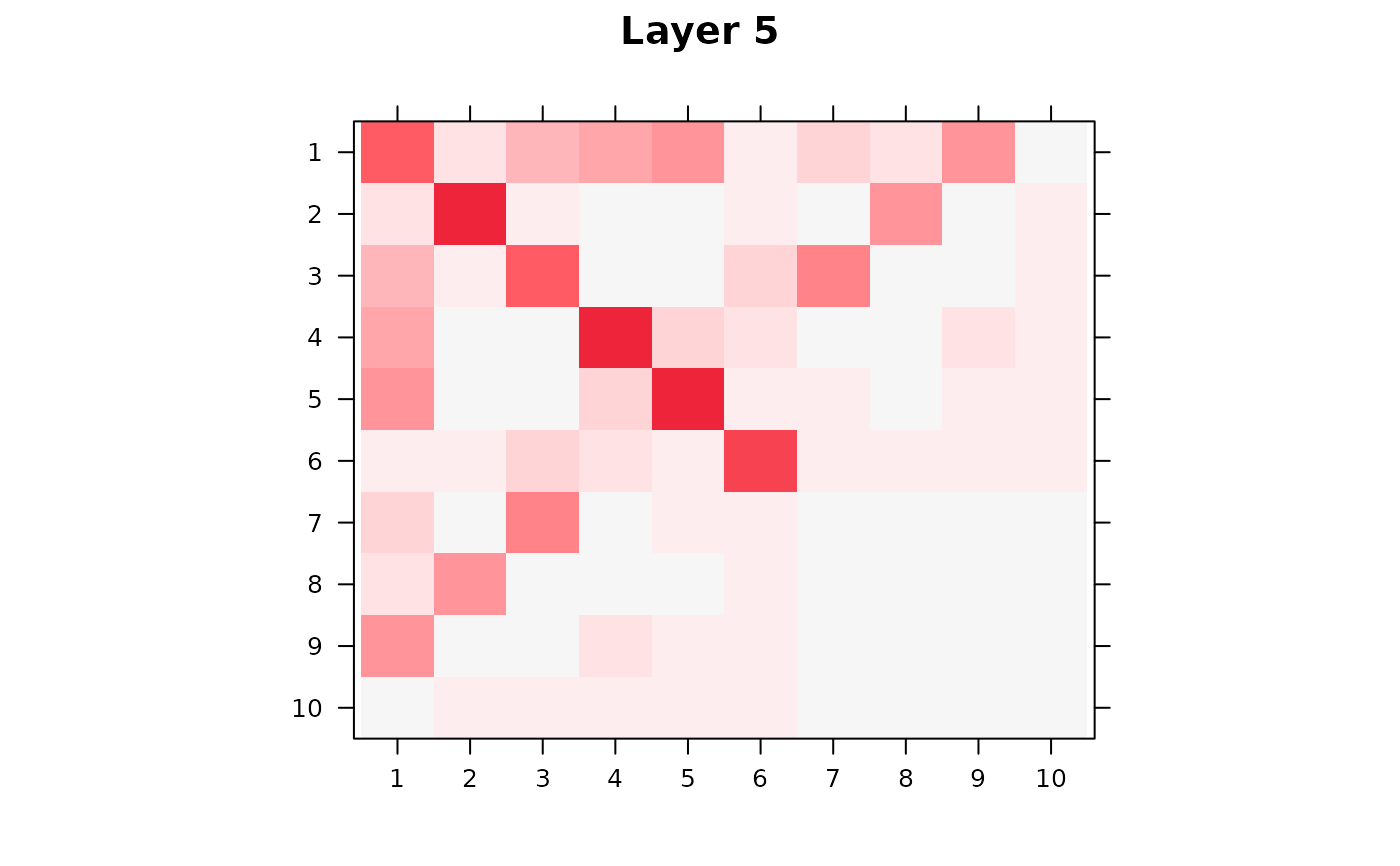

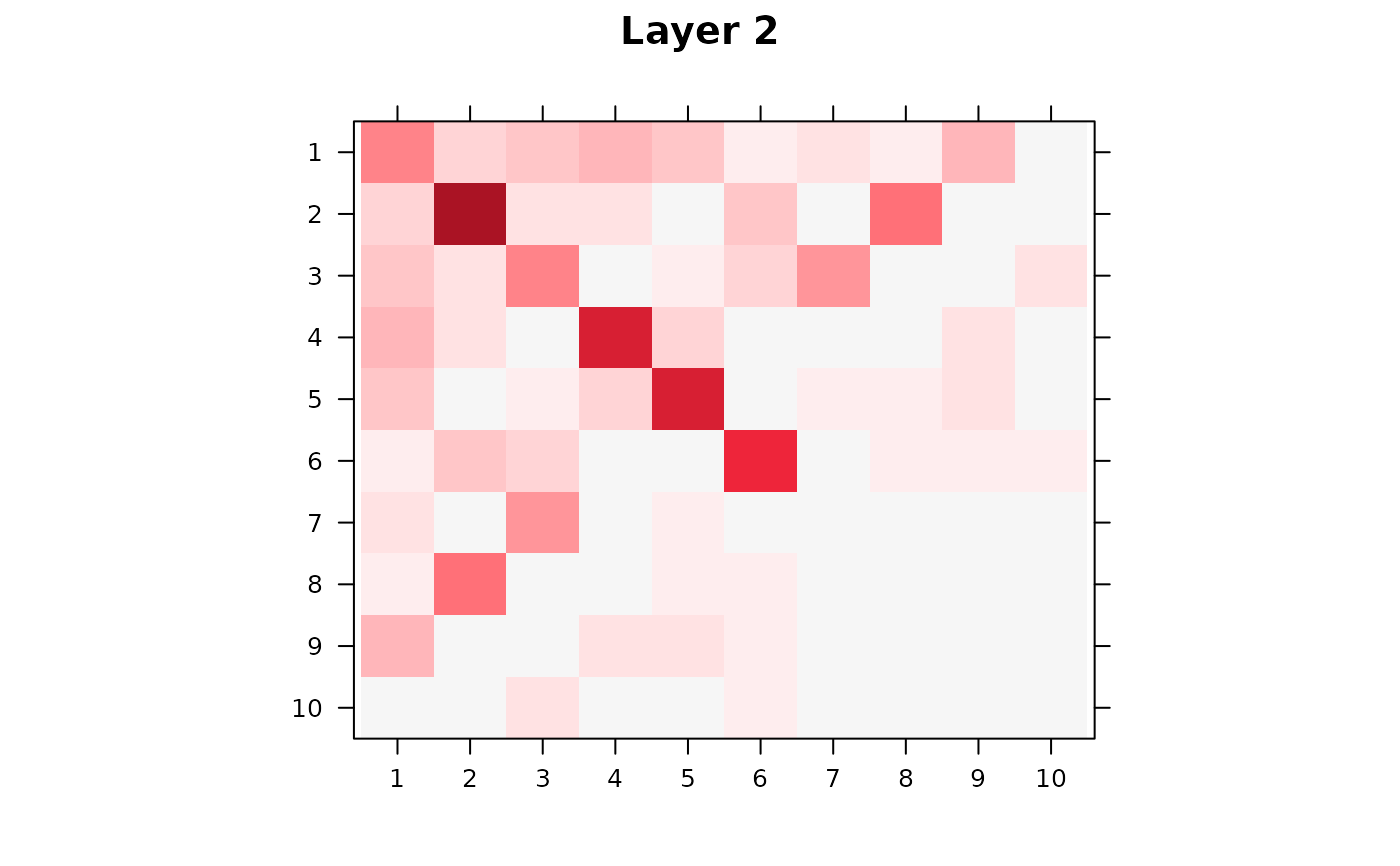

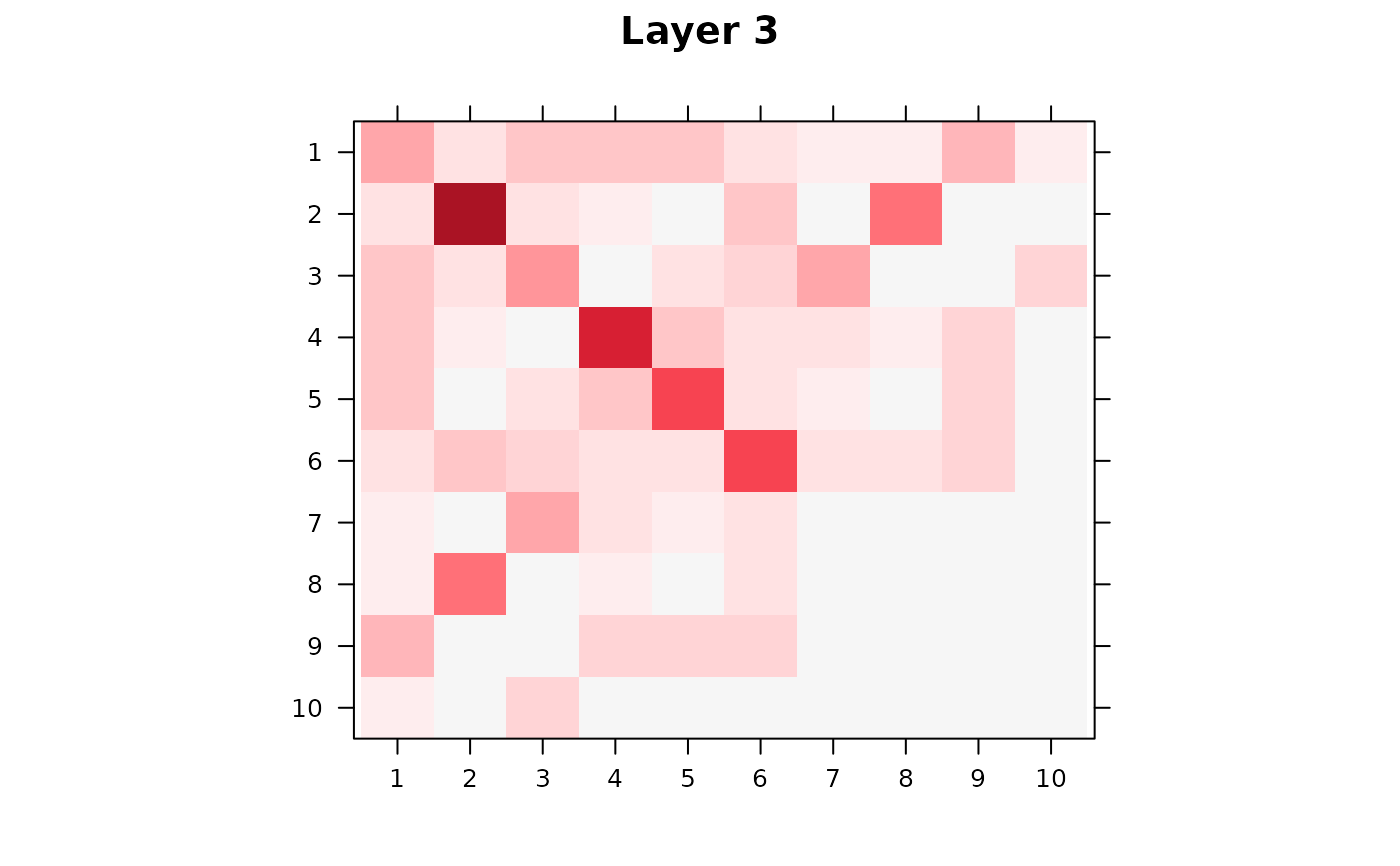

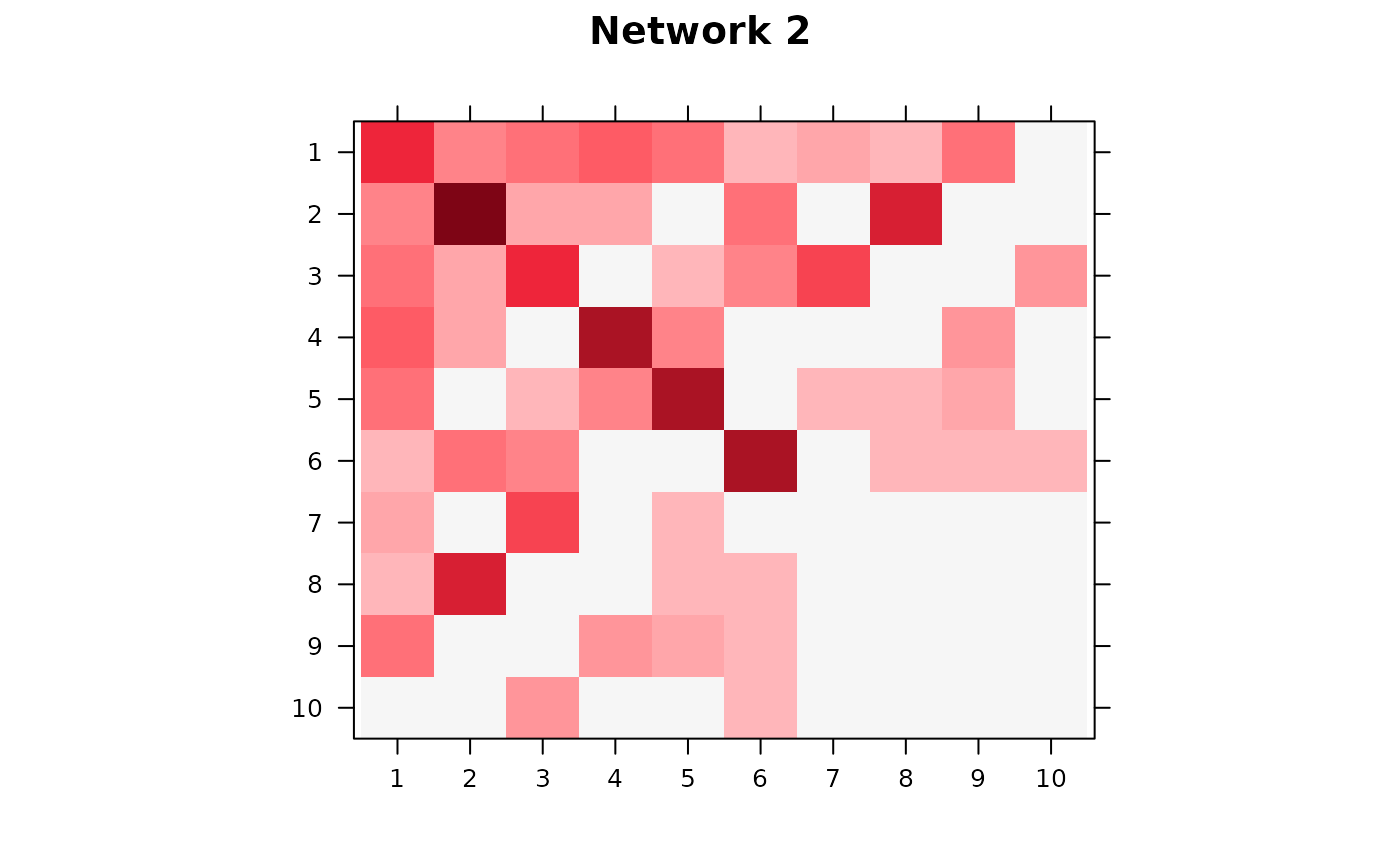

plot(mnhist_Ind_vil, power = 0.5)












plot(mnhist_Ind_vil, layout = c(3,4))

plot(mnhist_Ind_vil, layer_titles = paste0("Network ", seq_along(mnhist_Ind_vil$rho_hat)))












# }
